产品型号:FY0181681000

产品详情

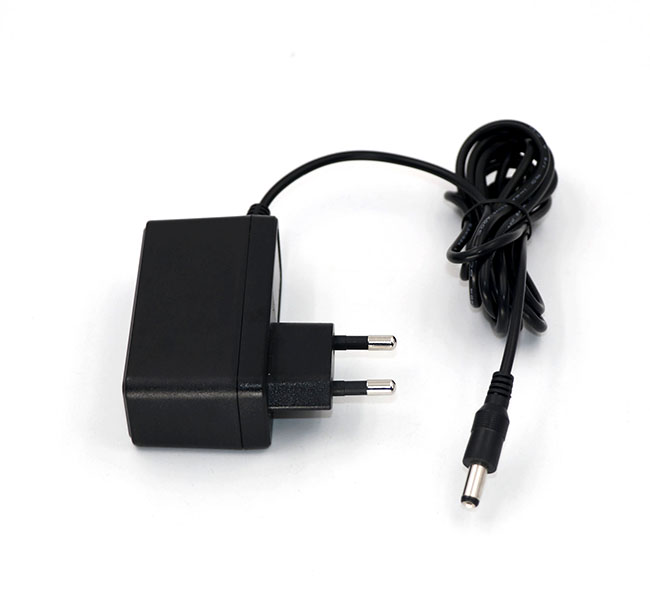

16.8V 1A 电源


1.参数信息


输入电压100-240V输出功率18W
输出电压16.8VDC线长1M或根据客户要求
输出电流1AAC头美规/欧规/澳规/英规等
AC端口八字尾/品字尾/梅花尾/无DC接口5.5*2.1/三芯航空头/根据客户要求
AC线长1.2M/无认证CE,FCC,CCC,ROHS,SAA,KC,KCC,UL,PSE,etc

2、输入特性(INPUT CHARACTERISTICS):


2.1输入电压范围:从100Vac到240Vac, 单相输入:

(The range of input voltage is from 100Vac to 240Vac single phase:


Minimum/最小

Normal/额定值

Maximum/最大

Input Voltage/输入电压

90Vac

100Vac~240Vac

264Vac

Input Frequency/输入频率

47Hz

60Hz/50Hz

63Hz

2.2输入电流(Input Current):

AC输入电压

AC input voltage

空载输入电流

I input no load

满载输入电流

Full load input current

100V/60ZH

≤12mA

≤1.8A

230V/50ZH

≤30mA

≤1.8A


3、输出特性(OUTPUT CHARACTERISTICS):


  3.1额定电流 CV模式(Rated Current CV mode):

额定输出电压                  Rating Output Voltage

空载输出电压范围                     No load Voltage Range

输出额定电流                  Output rated current

16.8V

16.3V—17.3V

1.0A

输出恒流电压范围              Output constant current voltage range

输出恒流电流范围             Output constant current range

测试模式               Test pattern

11V—15.8V

0.8A—1.2A

CV模式/CV mode

3.2指示灯状态(Indicator light state):

充满/待机状态

Full / standby

充电状态

Charging state

转灯电流

Turn lamp current

绿色/green

红色/gules

350mA


4、保护功能(PROTECTION REQUIREMENT):


4.1短路电路保护:

    Short Circuit Protection:

    短路保护功率值:≤3W,该电源供给电器在短路解除时,能恢复正常工作.

Short circuit protection: power value is less than or equal to 3W, the power supply in the electrical short circuit is removed, can resume normal work.

4.2过流保护(Over current Protection):

过流保护电流值:<1.3 A过流故障排除后,电源将自动恢复正常工作.

    Over current protection current value: <1.3A , after overcurrent failure is excluded, the power will automatically resume normal work.
